Industrial - Unmanaged: BLUEBERRY BU-1200 SERIES

Product Description

The Blueberry BU-1200 Series - Unmanaged Industrial Ethernet Switch with 4x10/100BASE-TX (RJ-45) + 1x SFP

bu1200Other SFPs including BIDI fiber transceivers for other fiber lengths are available on request. The Blueberry BU-1200 Series Ethernet switch series offers communication via copper and optical fiber ports. It is a compact unit designed for industrial environments and offers a wide temperature range [-40°C..70°C]. Speed and duplex can easily be configured via DIP switches if needed. The unit has 4 x 10/100/1000BASE-TX (RJ-45) and 1 x 1000BASE SFP cage which can be equipped with none or one pluggable fiber transceivers:

  • 1000BASE-SX, 1000Mbps, multi-mode (850nm) LC connector - 550m
  • 1000BASE-LX, 1000Mbps, single-mode (1310nm) LC connector - 10km

Other SFPs including BIDI fiber transceivers for other fiber lengths are available on request.

The unit further features dual redundant DC power inputs, DIN-Rail Mounting and comes in an IP30 Aluminum case

standards

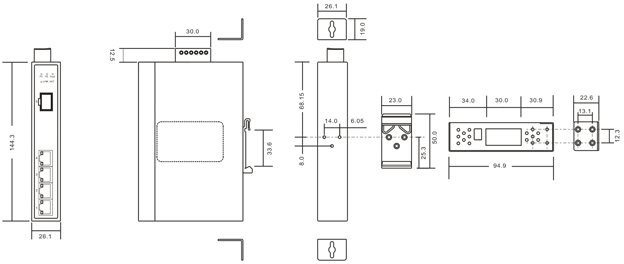

bu1200_dimensions

Key Features

The BLUEBERRY BU-Series offers unmanaged Ethernet switches for Industrial applications

Interoperability

The Blueberry BM-Series Industrial Ethernet switches support all relevant IEEE Ethernet standards.

Fiber Connections Small Form-factor Pluggable (SFP) transceivers for all types of multi-mode or single-mode optical fibers

Product Comparison

Blueberry BU-Series product comparison chart

Switches for DIN-rail mounting

 BU-1200F1BU-103F1BU-106F2BU-108 BU-1200
10/100BASE-TX RJ45 1 2 48
10/100/1000BASE-TX RJ-45        4
100BASE-FX SFP 1 1 2
1000BASE--X SFP      1
1000BASE-COMBO SFP

Product Versions

Unmanaged Industrial Ethernet Switch with 4x10/100BASE-TX (RJ-45) + 1x SFP with the following options:

Article No.Product Description
BU-1204F0(Without fiber transceivers)
BU-1205F1-SX1 x 1000BASE-SX-550m (LC) SFP for multi-mode fiber (850nm) < 550m
BU-1205F1-LX1 x 1000BASE-LX-10km (LC) SFP for single-mode fiber (1310nm) < 10 km

Other combinations including BIDI fiber transceivers for other fiber lengths are available on request.

Requests and orders can be sent to contact@ontimenet.com

Documentation

Unmanaged Industrial Media Converter with 1x10/100BASE-TX (RJ-45) +1xSFP

BU-1200 Key Features Documentation
bu1200
  • 4 x 10/100/1000BASE-TX ports
  • 1 x 1000BASE SFP port
  • Wide operating temperature: [-40°C..70°C]
  • Dual redundant DC power input
  • IP30 aluminum slim housing
  • Mounting: DIN-Rail
